GRAFCORE Engineered White Oak
Real wood through a considered assembly
GRAFCORE offers a distinct way to specify engineered white oak. The published 5/8-inch sample describes a 4 mm wear layer, a 10 mm solid-hardwood core, and a 2 mm veneer backing. Those components distinguish it from Graf's Baltic birch engineered family. When comparing options, start with the actual assembly rather than assuming every product described as engineered is built the same way.
What is inside this GRAFCORE floor?

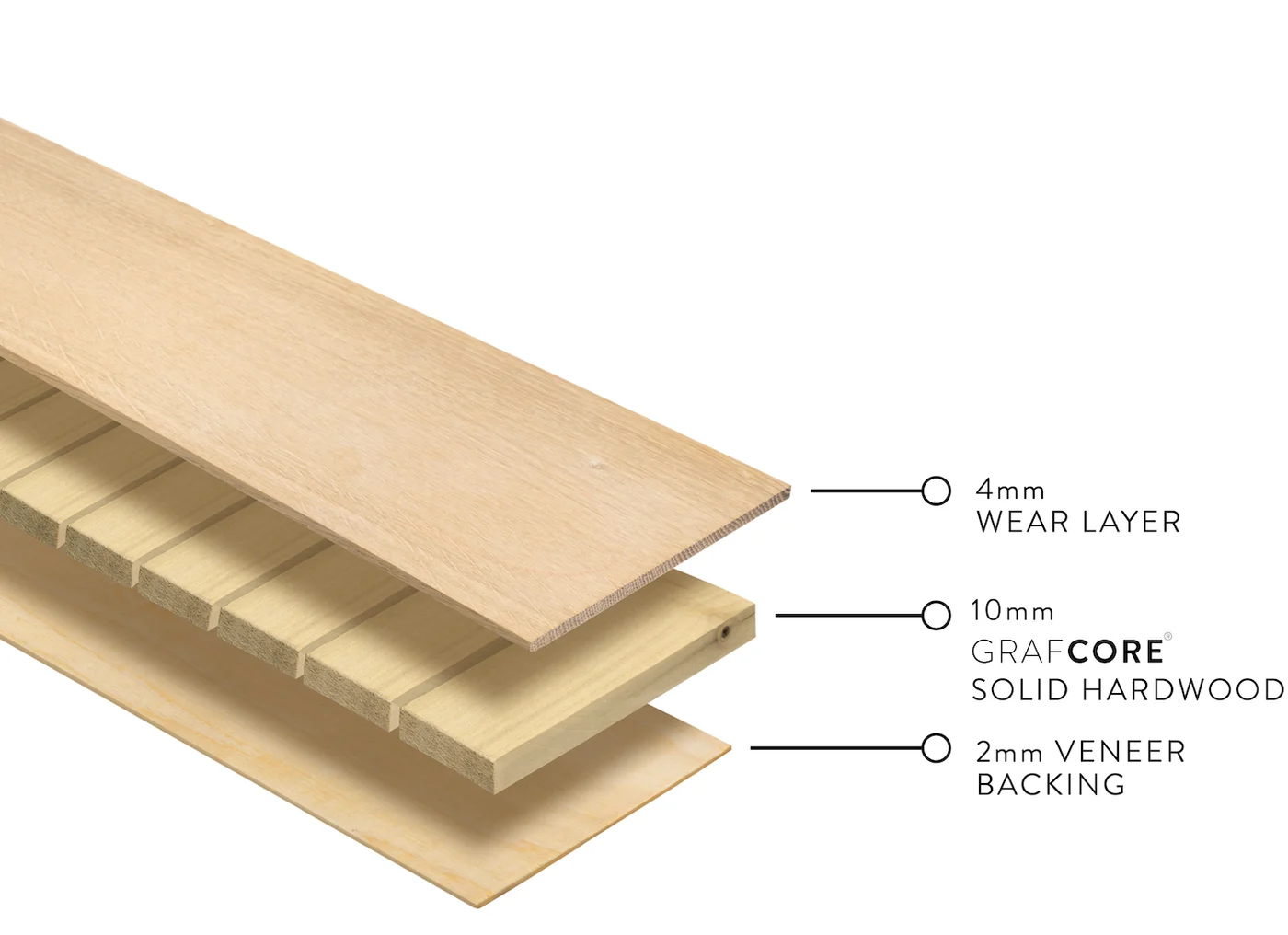

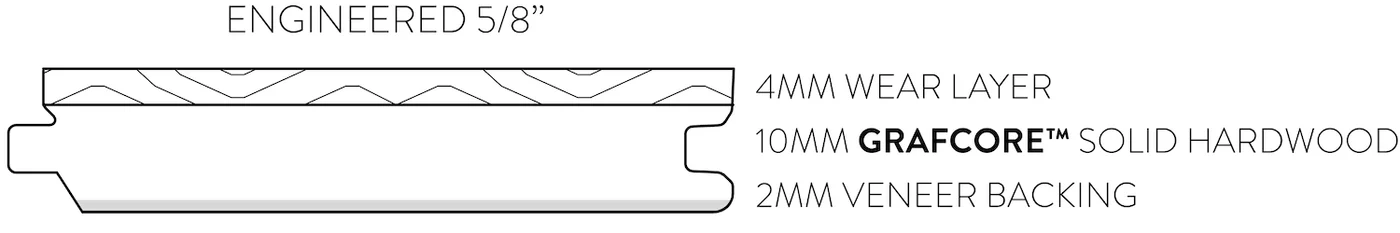

The published 5/8-inch sample lists a 10 mm solid-hardwood core beneath a 4 mm white oak wear layer, with a 2 mm veneer backing.
Is the top layer laminate?
No. The described wear surface is real white oak, not a printed decorative layer.
How is it different from Baltic birch engineered oak?
The supporting core differs. Compare the manufacturer's construction and installation documents for each family.
Can I choose a quieter grain?
Rift and quartered grain options are listed in the sample selector. Evaluate matching samples and confirm the final grade and cut.
Does the 5/8-inch figure include underlayment?
No. It describes the board profile, not every layer of the installed floor assembly.
Will the sample match every board?
No. Wood varies naturally. A larger sample selection is more informative than a single piece.
Can it be installed with radiant heat?
Obtain written approval and the applicable temperature and installation limits for the exact product before specifying radiant heat.
Make the grain part of the design
The details that matter

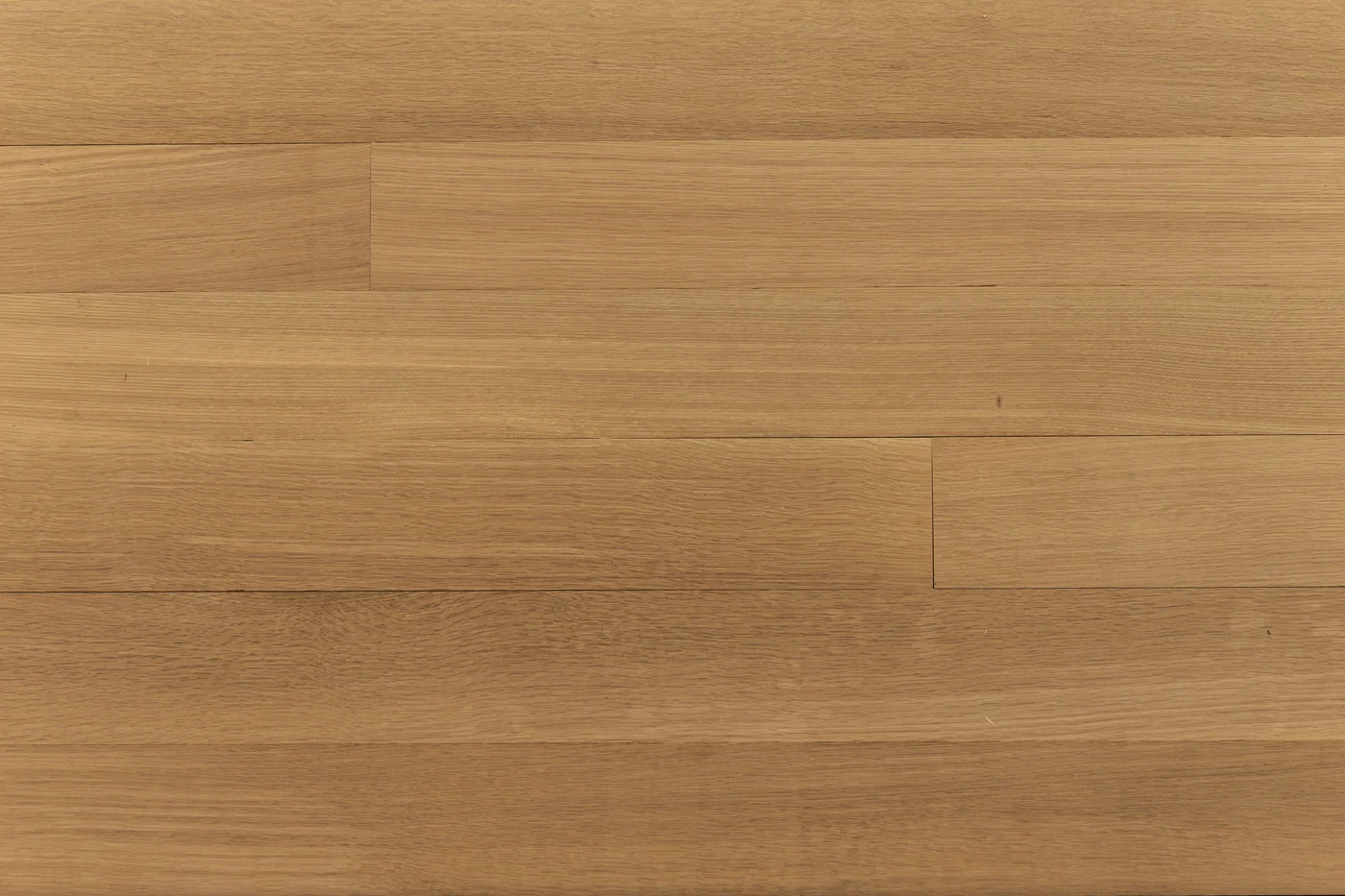

White oak can read as quiet and linear or expressive and varied. The sample menu includes Rift + Quartered, Plain Sawn, Rift, and Quartered options alongside Character and Select + Better grades. Grade and cut answer different questions: one concerns the visual mix, the other the grain presentation. Ask for a representative selection when continuity across a large open floor is important.
Coordinate the floor height early
The nominal 5/8-inch board is only part of the installed height. Underlayment, adhesive, leveling work, and adjoining finishes can change the final transition. Check doorway clearance and stair details before releasing the order. If a different thickness is needed, compare the separately specified GRAFCORE family rather than treating the products as interchangeable variants of one assembly.

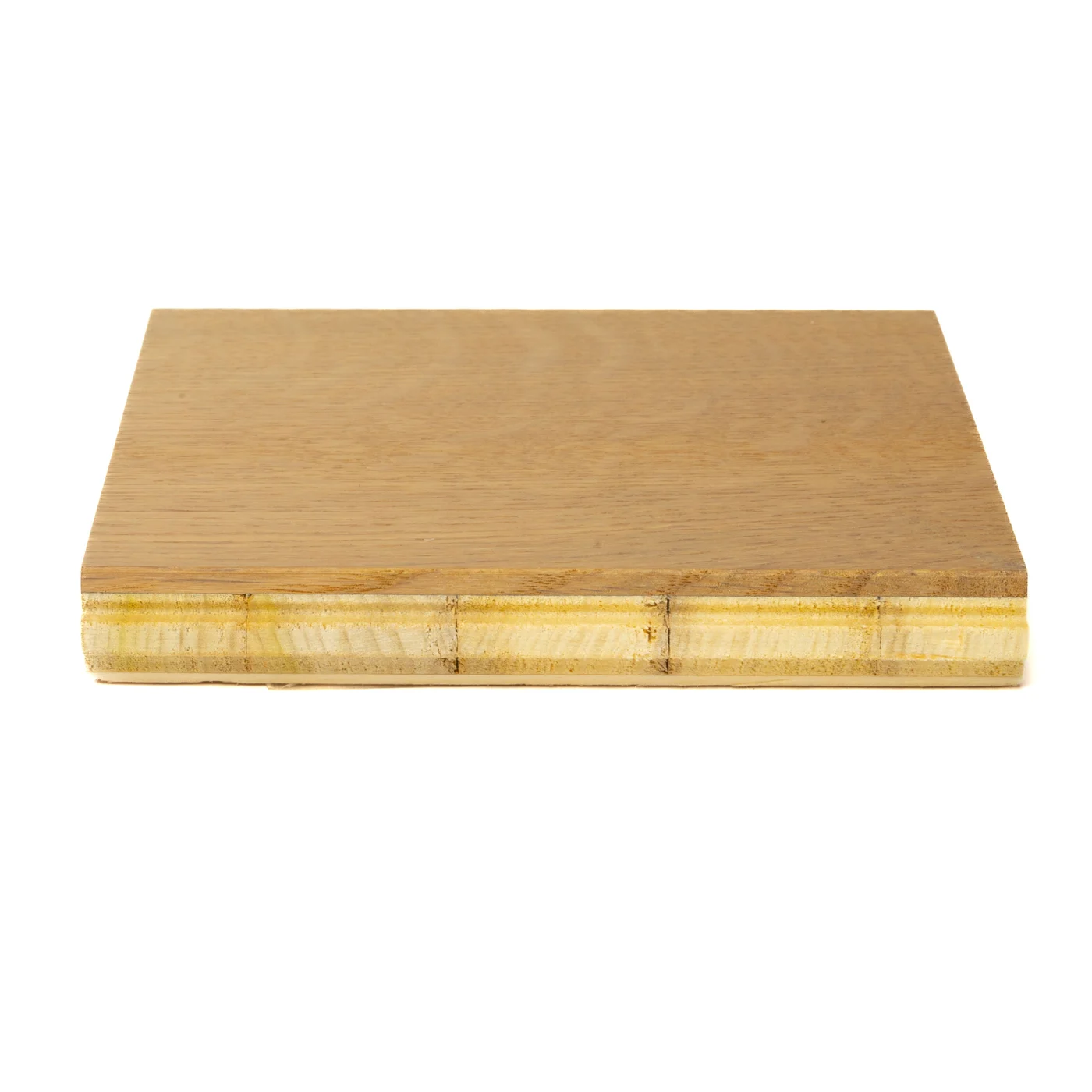

Evaluate a sample before choosing the floor
A small piece is useful for comparing grain and texture against your home's materials. It cannot certify moisture suitability, installed color, full-board lengths, or the visual range of a whole shipment. Record the species, core, grade, pattern, and width you evaluated so the final quotation describes the same selection. Confirm the approved finish system and maintenance guidance with the order. The surface remains real hardwood and should not be exposed to repeated standing water.
Sample specifications and choices
Width: 2 1/4", 3", 4", 5", 6", 7", 8", 9", 10", 11", 11 1/2". Grade: Character, Select + Better. Pattern: Rift + Quartered, Plain Sawn, Rift, Quartered.
Review a manufacturer sample before approving your selection. Floor quantities, final specifications, availability, and freight are confirmed separately from the sample order.
